PEC04SAAN
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PEC04SAAN
Datasheet:
Description:

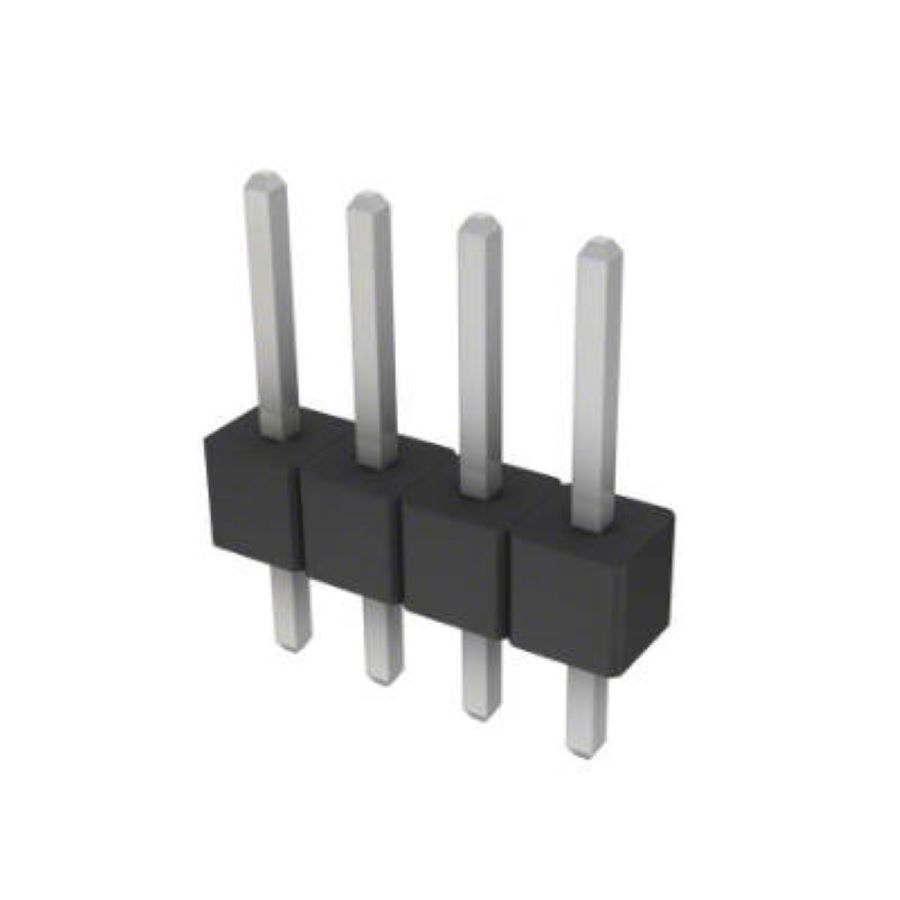

Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.2 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 2.54 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 6472
Distributors
pcbx
pcbxUnit Price$0.29204
Ext.Price$0.29204
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29204 | $0.29204 |
| 10 | $0.24634 | $2.46340 |
| 25 | $0.23332 | $5.83300 |
| 50 | $0.22099 | $11.04950 |
| 100 | $0.20931 | $20.93100 |
| 300 | $0.19773 | $59.31900 |
| 500 | $0.18680 | $93.40000 |
| 1000 | $0.17788 | $177.88000 |
| 3000 | $0.16805 | $504.15000 |
| 5000 | $0.15877 | $793.85000 |
| 10000 | $0.15120 | $1512.00000 |
